Flat Belts

FLEXSTAR J™Belts

Since this is an integrally molded seamless product with excellent flexibility and bending resistance, it can be used with small diameter pulleys, and smooth and stable rotation can be obtained.It demonstrates excellent performance in transmission, banknote and card conveyance, and is widely used in financial terminals, ATMs, ticket-vending machines, etc.

Product Details

Constituent Materials

Low-modulus type

Low modulus type is suitable for bill, card, and coin transport.
Patterned type is also available (JLU6-N and JLU6-D specifications).

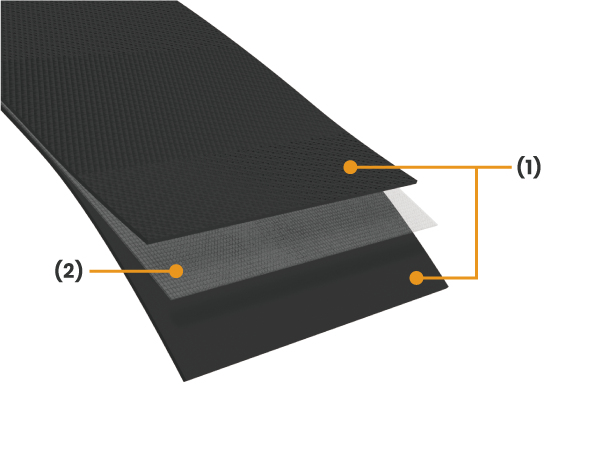

		JN	JL	JL3	JLU5
Conveyor surface		Smooth (polished)			Flat (knitted fabric)
Constituent materials	(1) Rubber	H-NBR			Millable Urethane
Constituent materials	(2) Tensile element	-	Nylon	Polyester
Manufacturable width (mm)		4～30	5～30	8～40	8～40
Thickness (mm)		1.0/2.0/3.0/4.0	0.7/1.0	0.65/0.80/1.00/2.00	0.65/0.80/1.00/2.00
Manufacturable length (mm)		60～1200	60～2500	60～798	80～1025
Min. pulley diameter (mm)		8	8	8	8

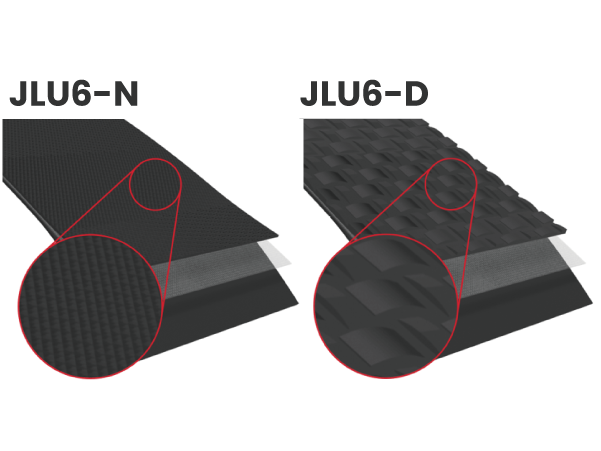

The JLU6 is equipped with a surface pattern to prevent slippage caused by metal powder adhesion during coin transport. This surface pattern allows for maintaining high grip strength over a long period.

		JLU6-N	JLU6-D
Conveyor surface		Cloth pattern (small)	Cloth pattern (large)
Constituent materials	Rubber	Millable Urethane
Constituent materials	Tensile element	Polyester
Manufacturable width (mm)		4～30	5～30
Thickness (mm)		1.0/2.0/3.0/4.0	0.7/1.0
Manufacturable length (mm)		60～1200	60～2500
Min. pulley diameter (mm)		8	8

High-modulus type

The high modulus type is suitable for light load transmission, bill and card transport. The polyester core wire reduces elongation and improves durability compared to the low modulus type.

Tensile strength increases in the order of J3H, J6H, and J8H.

(1) Rubber: H-NBR
(2) Cord: Polyester

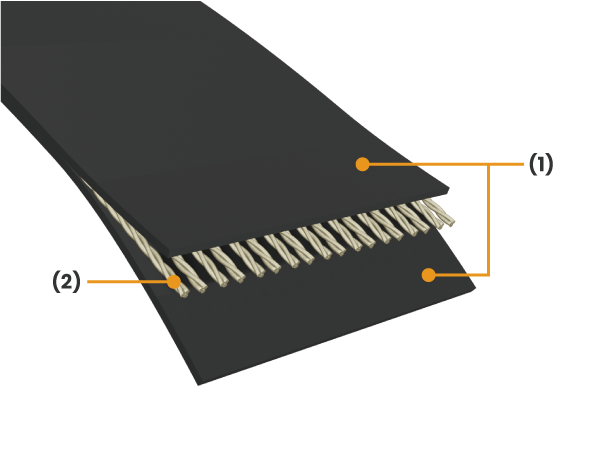

		J3H	J6H	J8H
Conveyor surface		Smooth (polished)
Constituent materials	(1) Rubber	H-NBR
Constituent materials	(2) Cord	Polyester
Manufacturable width (mm)		8～30	5～30	8～40
Thickness (mm)		0.65/1.00	0.7/1.0	0.65/0.80/1.00/2.00
Manufacturable length (mm)		100～3000	60～2500	60～798
Min. pulley diameter (mm)		10	8	8
Tensile strength(N/10mm width)		≧150	≧300	≧450

Ultra-high modulus

The ultra-high modulus type uses glass fibers with minimal elongation, characterized by high durability and flexibility.

		J8GA	J8GE
Conveyor surface		Smooth (polished)
Constituent material	(1) Rubber	Chloroprene	EPDM
	(2) Tensile element	Glass code
	(3) Pulley side fabric	Nylon
Manufacturable width (mm)		3～1000	3～100
Thickness (mm)		0.65/0.85	0.65/0.85
Manufacturable length (mm)		155～2000	155～2000
Min. pulley diameter (mm)		10	10

Breakup and conveying for ceramic chips type

This product is developed for the transport and separation of ceramic chips, such as chip resistors. It is flexible and highly durable, making it ideal for transporting ceramic chips. You can choose the specifications from the lineup based on the size of the ceramic chips and the need for conductivity.

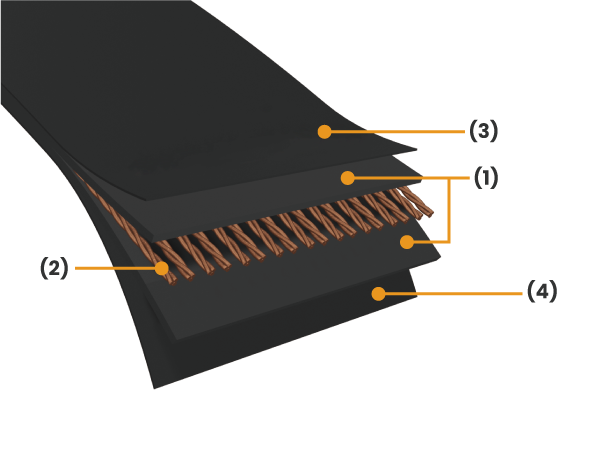

		J8GC1	J8GC5	J8GC6	J8GC8	J8GC9	J8GD
Conveyor surface		Flat (fabric)
Constituent materials	(1) Rubber	H-NBR	Chloroprene
	(2) Tensile element	Glass code
	(3) Surface fabric	Nylon			Special nylon		Nylon
	(4) Pulley side fabric	Nylon
Manufacturable width (mm)		3～1000	3～100	3～100	3～100	3～100	3～100
Thickness (mm)		0.7	0.57	0.64	0.62	0.73	1.1
Manufacturable length (mm)		155～2000	155～2000	155～2000	155～2000	808～1500	155～2000
Min. pulley diameter (mm)		10	10	10	10	10	10
