Timing Belts

Giga Torque GX

  • Giga Torque GXサムネイル1
  • Giga Torque GXサムネイル1

The GIGATORQUE GX is a belt that strives for strength and flexibility by using a highly rigid and flexible carbon cord. The improved transmission capacity allows the belt width to be made even narrower, saving space and reducing weight. It also has industry-leading power transmission capacity and can be used in high-torque, high-load conditions where conventional metal chains are the only option. In addition, the use of a special abrasion-resistant material for the belt reduces high frequency noise.

Contact us about this product

Product Details

Features

  • Excellent durability

    By using flexible carbon fibre with high rigidity for the cord, we have achieved excellent durability and flexibility.

  • Low noise

    By using a special tooth fabric with high abrasion resistance, we have reduced noise in the high-frequency range.

Comparison of GIGATORQUE GX and metal chains

GigaTorque GX Metal chain Remarks
Transmission efficiency

GigaTorque GX

◎

Metal chain

○

Remarks

The belt has low energy loss.
Impact resistance

GigaTorque GX

○

Metal chain

△

Remarks

The belt is an elastic body that has low energy loss, so it can absorb a certain amount of impact.
Noise and vibration

GigaTorque GX

◎

Metal chain

△

Remarks

5dB to 10dB reduction
Adaptable range of revolution speed

GigaTorque GX

◎

Metal chain

△

Remarks

The belt is more advantageous during high-speed revolution.
Total system weight

GigaTorque GX

◎

Metal chain

○

Remarks

Compared to metal chains, belts are lighter in weight.
Necessity of lubricating oil

GigaTorque GX

Unnecessary

Metal chain

Unnecessary

Remarks

No refueling required, maintenance-free

Constituent Materials

  • (1) Rubber: Ultra-hard synthetic rubber
    (2) Cord: Carbon
    (3) Tooth cloth: Nylon/fluorine fibre

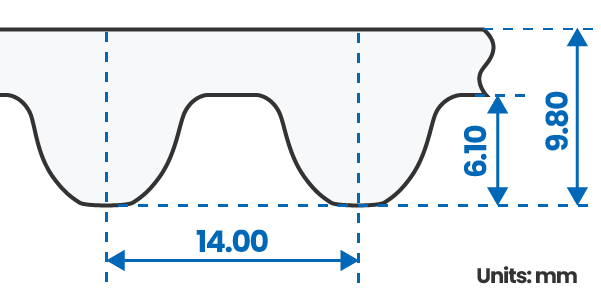

Tooth Profile
